The Wireless Set No 19 Mk 1 & Mk 2

The WS19 was designed especially for AFVs (armoured fighting vehicles) and was used in almost all kinds of vehicles throughout the armoured divisions.

With this purpose in mind it was designed to give very clear speech so that RT conversations could  be kept up in a fast moving vehicle even through the noise of the tank.

The 19 set  was used in some areas of the forces as late as 1960
.

The WS 19 Set Mark 1 & 2 gave three separate services : -

"A set " sender-receiver (long range) between different head quarters and between  individual vehicles.

"B set" sender-receiver (short range) between individual vehicles in a troop or in a headquarters.

"IC amplifier" which is a telephone intercommunications system between all members of the crew of a vehicle, this is particularly  important  for the tank commander so that he can speak to his gunner, driver etc and fight his tank.


Each member of the crew has one headset and with some exceptions is provided with a switch to enable him to use whichever set he wishes.

Both "A" and "B sets are switched  to SEND by means of the pressel switch in the microphone.

The "A" set has facilities for RT CW and MCW.

The "B" set has facilities for RT only.

The "A" and "B" sets each have a separate rod aerial


Range : -

"A" set.


The ranges obtainable depend on many variable factors such as the intervening country, frequency, time of day etc.

Approximate ranges obtainable on the move with a 8' rod during daylight over average country in the British Isles are : -

RT and MCW ..10  miles CW ..15 miles.

Greater ranges can be obtained when conditions are good and by using longer aerials.


"B" set. 20" rod aerial (not adjustable).
Up to 1 mile
in  open country, but reduced to about 300 yards by buildings,  hills or woods.

Frequency:- "A" set. Mk1 2.5 to 6.25 mc/s. Mk2 and Mk3 2.0 to 8.0mc/s in two bands.

"B" set. 235mc/s, variable only a very little.

Power Supply : -
The power supply unit is in a separate case mounted in the same resilient cradle as the set and is designed to work from a 12 volt accumulator.

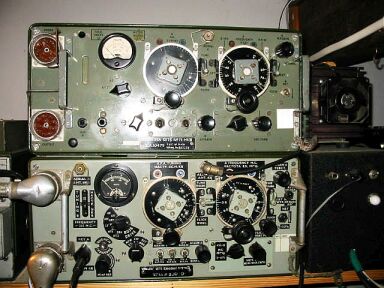

19 Set Mk3 no B set.jpg (34166 bytes)

It consists in Mk. 1 and Mk 2 of a single rotary transformer with two H.T. windings (275 and 500 volts).

The supply is normally taken from 170 AH wireless batteries or the vehicle battery (150 AH in most British tanks.

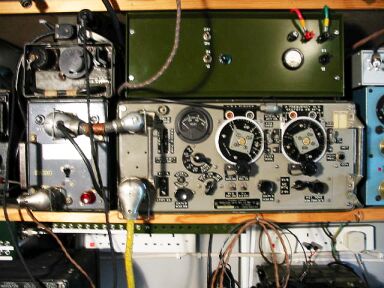

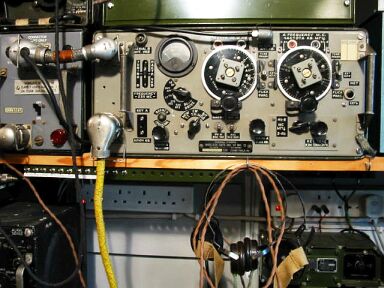

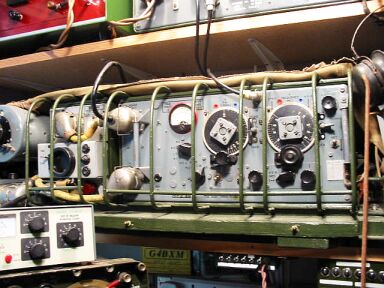

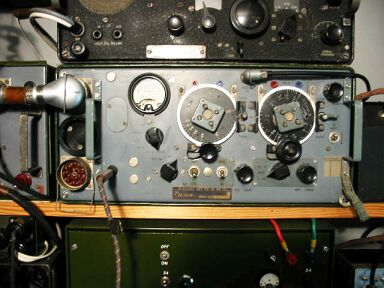

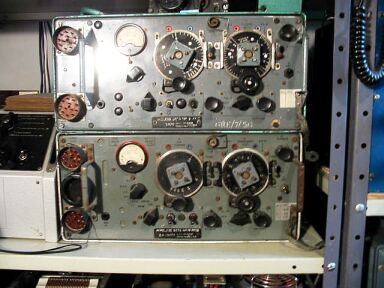

All the19 sets shown in the photos are  fully operational.


The Manual Contains the Following
I have the following manual of 97 pages, of which I can supply a copy of  in A4 pages.

It covers the 19 Set Mk1 & Mk2.


The power supply, A & B set, circuits, valve data, & Layout.

The manual includes Circuits Layouts Component lists etc.

Total of 97 A4 Pages

Prices Below

I used this manual to renovate my Mk1 & Mk2 19 Sets.

Wireless 19 Set WS No 19 WS19 Mk1 Mk-1 Mark1 Mark 1 MkI Mk 1 Mk 1.

Mk2 Mk-2 Mark2 Mark 2 Mk2 Mk 2 Mk 2.

Manual and Circuit
Plus Additional Articles
available Details Below
On Paper CD or Download

Click Here



Manual and Circuit
Plus Additional Articles
available Details Below
On Paper CD or Download

Click Here


Wireless 19 Set WS No 19 WS19 Mk1 Mk2 Transceiver
Mk 1 Mk 2 Mk11 Mk 11 MkI MkII  Mk I Mk II RX TX Transmitter and Receiver
WS 19 Wireless 19 Set Mark1 Mark 1 & Mark11 Mark 11 RX TX Mark I & Mark II

Manuals are Available Worldwide as a Download on CD or Paper Copy.

The 19 Set Mk1 & Mk2 Manual contains 97 pages including Circuits Component Lists and Layouts.

Manual 97 A4 pages worldwide.

Additional Articles 45 A4 pages worldwide.

Special Offer Manual 97 pages and Additional Articles 45 pages Total 142 pages.

Printed Paper Copy or on CD are Plus Postage.

( For all Payment Options plus UK and Overseas Postage )
( Please Click the Payment Links Below )


Details of Additional Service Articles available Below  Click Here

We do all we can to provide the very best that is available for you.
But in the unlikely event that any data should not be as you expected.
A refund is always available. Kind Regards Allen and Alanna.


Manuals are Available Worldwide as Paper Copy on CD or as a Download

Thank you for your interest. Allen and Alanna G0RIT
Should you wish to purchase


For Worldwide Prices Payment Options and Delivery Details
 19 Set Mk1 & Mk2 Manual Only


For Worldwide Prices Payment Options and Delivery Details
 Additional Articles Only

  For Worldwide Prices Payment Options and Delivery Details
 Special Offer 19 Set Mk1 & Mk2 Manual and Additional Articles

Should you wish to contact us first with any queries Please Click Here




We do all we can to provide the very best that is available for you.
But in the unlikely event that any data should not be as you expected.
A refund is always available. Kind Regards Allen and Alanna.


The WS 19 Additional Articles 45 pages.

Converting The 19 Set Part 1.

Converting The 19 Set Part 2.

Modifying The Army W.S. 19 For Amateur Band Operation.

Further Modifications For The W.S.19.

The 19 Set Further Improvements Part 1.

The 19 Set Further Improvements Part 2.

The 19 Set Further Improvements Part 3.

19 Set Mods Part 1.

19 Set Mods Part 2.

Modification Nototions For The Type 19 MK.III.
For transmission and reception on the LF bands.

19 Set Mk.III Rx Bandspread.
For 80 / 160 meters suggesting practical modifications.

More About The 19 Set.
Conversion of the Mk 111 Version as a transceiver fof LF bands 80 / 160 modification details and circuitry
