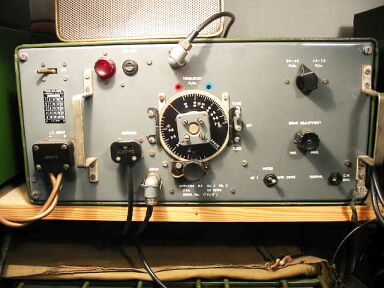

The RF amplifier No 2
Designed to
amplify the modulated RF output from the Wireless Set No 19
and thus to increase the range of the latter.
It employs two or four ATS
25 valves in parallel which operate under Class A conditions.
On RT
and MCW send / receive switching is carried out in the normal way from the
19 set, when sending CW however a separate S / R switch
on the amplifier unit is used.

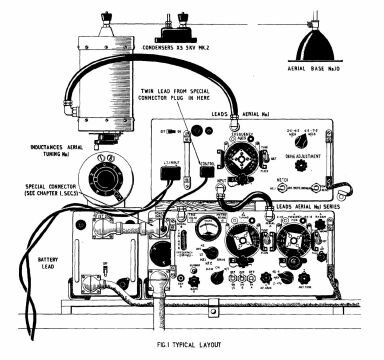

The 19 set variometer is replaced by
Inductance Aerial Tuning No1, which tunes the aerial to a quarter
wavelength.
|
|
When the amplifier is switched off the
19 set works normally without any reconnection.
The amplifier tunes
from 2.1 Mc/s - 7.5 Mc/s in two bands and over this frequency range
full gain is obtained.
Operation between 2 & 2,1 Mc/s and between 7.5
and 8 Mc/s is possible on any 19 set but full gain is not generally
obtained.
Power Supply : -
Power is derived
from the 12 volt accumulator which supplies heater current for the two or
four ATS 25 valves connected in series - parallel, as well as input to a
rotary transformer contained in the unit.
|
 |
The rotary transformer which
supplies HT to anodes and screens has an output of
approximately 600v at 240 mA.
Accumulator current consumption for the
amplifier alone is about 24 amps on send and 2.5 amps on receive.
All Mk 2
amplifiers are fitted with a cooling fan and they may be run
continuously on send.
Mk 1 amplifiers without fans must not be run
continuously for more than 15 mins in each hour. |
