|The 53 Set Transmitter
There is more to this HF transmitter
than I have, namely the modulator and power supply.

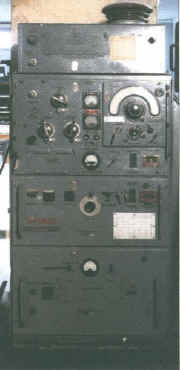

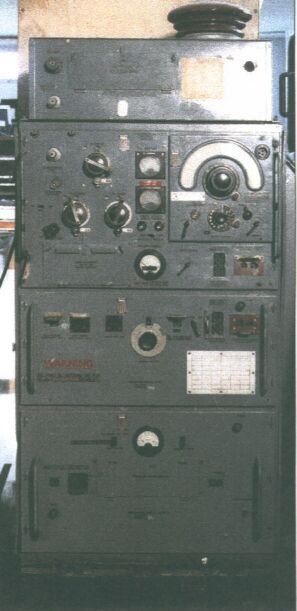

The unit pictured has
the PA stages with 3 large roller coasters and a couple of 813's.
is the separate slide in unit with the large dial.
This one is in mint
condition never having been used, one day I shall find the other
bits, power it up and dim the lights in Mullion Cove.
The complete transmitter should look
like the one below right, the unit on top I believe is the ATU.

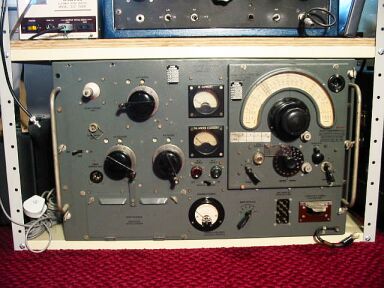

other photographs are of my own equipment, but as I do not have a complete
set the image to the right is not mine
|The photo to the right taken in the
1950s shows how not to service a 53 set, it was kindly supplied by Mr
Brian operated and serviced this radio transmitter as well as the 19 set
AR88 and others.
Bian is the good looking fellow on the left with
the fire extinguisher.
Update from Brian
Just for info. - The grease gun was a fire extinguisher and the other two were:- Sam Blake and 'Lofty' Manners.
Sam, who lived in Chorlton-cum-Hardy, Manchester, died a couple of years ago but I haven't any info on 'Lofty' Manners apart from the facts that he was a Nat. Serviceman and came from the West Country.
The three of us served in Gurkha Royal Signals (now the Queens Gurkha Signals) and the photoraph was taken in the transmitter site at Rasah Camp,
The camp being the HQ of the 17th Gurkha Infantry Division. (1955).
|The Wireless Sender No 53 Manual Contains the
Purpose and facilities
Brief circuit description
Weights and dimensions
TABLE I WEIGHTS AND DIMENSIONS.
R.F. Amplifier and Master Oscillator
Modulator Unit No. 27
Power Supply Unit No. 26
TABLE II INTERCONNECTION OF UNITS.
Opening up and prepare to net drill
Closing down drill
Crystal control operation
Details of components
Appendix I. Aerial Length Chart
Wireless Sender No. 53 mounted in racks mounting No. 12. Front view.
Wireless Sender No. 53 mounted in racks mounting No. 12. Rear view.
Power Supply Unit No. 26. Front panel.
Modulator Unit No. 27. Front panel.

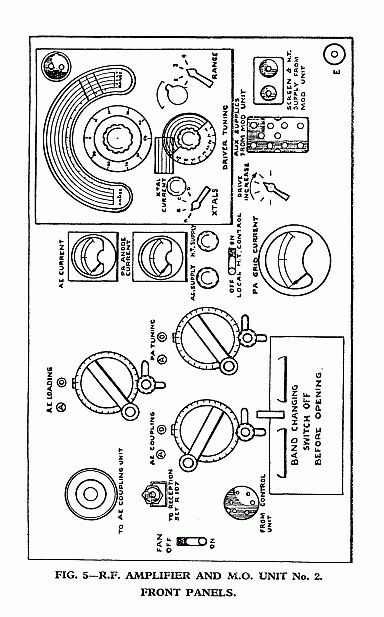

R.F. Amplifier and Unit Master Oscillator No. 2. Front panels.
Power Supply Unit No. 26. Plan view.
Modulator Unit No. 27. Plan view.
R.F. Amplifier and Master Oscillator. Plan view.
Aerial Coupling Unit No. 2A. Plan view.
P.S.U. No. 26 Circuit Diagram
Modulator Unit No. 27. Circuit diagram.
R.F. Amp., M.O., and Aerial Coupling Unit No. 2A. Circuit diagram.
