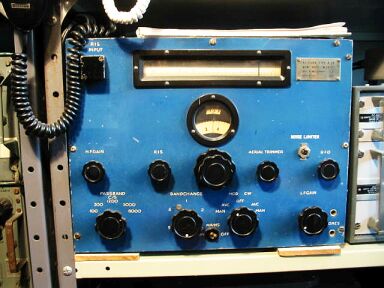

The Marconi CR100 B28
A self - contained Communications Receiver of super heterodyne type with AVC  for use on CW or Phone reception.


As with other versatile equipment of the Forties, the CR100 was subject to a number of variations,  most of them minor  in  specification, to suit particular Service needs.

Basic Circuit :-
Two RF amplifiers, both KTW62 or 6K7G.
Mixer - X66 or 6K8G.
Local oscillator - KTW62 or 6K7G.
IF amplifier- three KTW62 or 6K7G.
CW oscillator - KTW62 or 6K7G.

Detector agc and audio amplifier - DH63 or 6Q7G.
Output - KT63 or 6V6G.
Mains rectifier - U50 or 5Y3G.

Frequency Range :-
60 kc/s to 420 kc/s and 500 kc/s to 30 Mc/s in 6 bands.
Band1:- 60 to 160 Hz.
Band 2:- 160 to 420 kHz.
Band 3:- 500 to 1400 kHz.
Band 4:- 1400 to 4000 kHz.
Band 5:- 4000 to 11000v kHz.
Band 6:- 11000 to 30000 kHz.

Power Supply :-
A built in 200 - 250 volt AC power unit is positioned at the rear right of the chassis, sensibly remote from the tuned circuits.

Consumption is 85 watts.

Manual and Circuit
available Details Below
On Paper CD or Download
Click Here


Receiver Output :-

Loudspeaker (3 ohms or 1000 ohms) 2 watts maximum.
Line (600 ohms) of the order of 2mW.
Phones  (high or low resistance) depending on impedance of Phones and Receiver Edition.

Modified Editions
A number of Editions existed carrying modifications to suit the needs of various Services, the principal models being : -

CR100 CR100/1 CR100/2 RAF 1297 CR100/3 CR100/4 CR100/5 CR100/6 CR100/7 CR100/8 Mod.

Weight
82 lbs

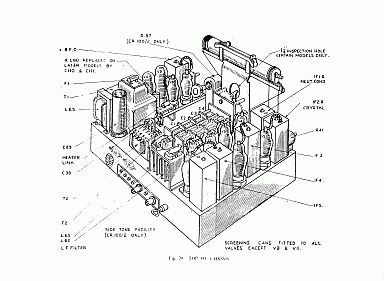

CR100 Chassis.jpg (24231 bytes)


PCR100  Prototype.
Low phone level. "B" gauge phone jacks.
3 ohm loud speaker.

CR100/1 B28 W2835 Admiralty.
High phone level. "A" gauge phone jacks. (A.P. 676).
1,000 ohms loudspeaker.

CR100/2 R1297 Army, RAF and other services.
As CR100 but with coaxial plug and
(RAF) socket fittings for aerial input and with side tone facility.

CR100/3 Superseded by CR100/5

CR100/4 B28 W2835A

As W2835 but fitted with scale clamping device and body guard.

CR100/5 B28 W2835B
As Patt. W2835 but with coaxial plug and socket fittings for aerial input and improved rear terminal board.

CR100/6 B35 W8126 Admiralty.

For use with other apparatus to comprise Tuner Amplifier B.35. Special input circuits and modifications for direction finding.

CR100/7 B28 W2835D.
As Patt W2835A but with noise limiter Admiralty Patt. 56703 and additional IF output jack.

CR100/8 B28 W2835E.
As Patt. W2835B but with noise limiter Admiralty Patt. 56703.

CR100/8 Ministry of Supply.

As CR100/8 except 3 ohm loudspeaker and B" gauge
phone jacks.
Manual and Circuit
available Details Below
On Paper CD or Download
Click Here

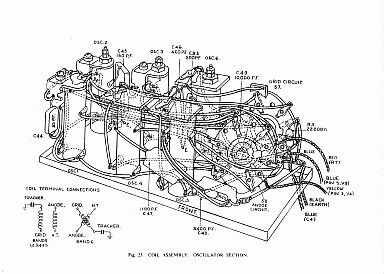

CR100 Coil Assay.jpg (28648 bytes)

The Marconi B28 CR100 Receiver Manual covers the following models
CR100 CR100/1 CR100/2 RAF 1297 CR100/3 CR100/4 CR100/5 CR100/6 CR100/7 CR100/8

Manuals are Available Worldwide as a Download on CD or Paper Copy.

Manual including all circuits & layouts 82 A4 pages worldwide
