BC348
The B-348 is a compact American made communications receiver, which was mass-produced during the war for the U.S. Army Air Force.
The BC-348 series ran to several  mark letters during its long production history.
Although the outside appearances were similar, internally there were considerable divergences, particularly with the later models.
The basic common specification was of a superhet having two r.f. stages, frequency-changer, three i.f. stages, detector / a.g.c. and output stage.


There was no intermediate a.f amplifier between detector and output.
The frequency-changer stage in the earlier marks consisted of separate mixer and local oscillator valves, later altered to a single-valve configuration.
The early marks had a b.f.o. combined with the 2nd i.f. amplifier, whilst the later types had it combined with the detector / a.g.c. valve.

The Frequency Coverage was the same for all marks:
200-500 Hz
1.5-3.5 MHz
3.5-6 MHz
6-9.5 MHz
9.5-13.5 MHz
13.5-18 MHz.

The Power Source being the aircraft 24v service battery, the valve heaters were arranged in series-parallel to present a nominal 25.2v load.
The h.t. was supplied by a dynamotor rated at 28v input and approximately 235v output at 75mA.
Why 28v you may ask ? well a lead-acid accumulator of nominally 24v (12 two-volt cells) gives 26.4v when fully charged, (2.2v per cell). However, when on charge the terminal voltage will be of the order of 28v, hence the input rating of the dynamotor.

Manual Circuits and
Layouts Available
Plus Additional Articles
Details Below
On Paper CD or Download

Click Here

Resistors were also placed in the heater circuit to reduce the voltage, as the battery was expected to be on charge throughout operational flights.
Similarly a nominal 12v battery gives 13.2v fully charged and a terminal voltage of around 14v on charge.

Another series of receivers numbered BC-224 was in concurrent production, these models being identical with the BC-348 except for the power source a 12.6v battery.


The Manual Contains similar information to the Following depending on model

On the BC348 Name Plate there will be a letter of the alphabet please quote this with your order

TABLE OF CONTENTS

GENERAL DESCRIPTION


General
Component Units
Cabinet
Chassis
Dial and Mask Assembly
Dynamotor
I-F Transformers, Crystal Filter, C.W Oscillator
Mounting
Panel
Plug
R-F and Oscillator Units

INSTALLATION AND ADJUSTMENT

Initial Procedure
Unpacking
Inspection
Installation
Mounting
Electrical Connections
Elimination of Electrical Interference
Mounting the Receiver
Antenna and Ground Connections
Preparation for Use
Inspection
Controls

OPERATION

Procedure
Operating Test
Reception

MECHANICAL AND ELECTRICAL CHARACTERISTICS

Circuits
Frequency Range and Bands
Input Coupling
Radio Frequency Amplifier
First Detector
Heterodyne Oscillator
Intermediate Frequency Amplifier
C-W Oscillator
Crystal Band-Pass Filter
Second Detector
Output
Description
Constant Internal Receiver Noise
Dynamotor DM~28~(*)

MAINTENANCE

Inspection
Dynamotor Service and Maintenance
Removal from Chassis
Lubrication
Commutator
Bearings
Reassembly
Power Rating
Removal of Front Panel
Dial and Mask Assembly
Servicing the Dial and Mask Assembly
Removal
Disassembly
Dial Replacement
Stop Arm Replacement
Replacement of Dial and Mask Assembly
Dial Calibration
Removal of Antenna, R-F Detector and Oscillator Units
Trouble Location and Remedy
Quick Check
Sensitivity
Trouble Location and Correction Procedure
Equipment Required
Weak or No Signals on All Bands, Modulated Reception
Weak or No Signals on Any One Band, Modulated Reception
Weak or No Signals on All Bands-C-W Reception (Modulated Reception Normal)
Measurements with Test Set 1.56-A
Failure of Dial Lights

SUPPLEMENTARY DATA

General

TABLE OF REPLACEABLE PARTS

DRAWINGS

LIST OF ILLUSTRATIONS


Radio Receiver BC-348J
Radio Receiver BC-348-J, Tube Positions

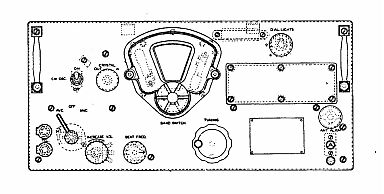

Radio Receiver BC-348-J, View of Front Panel
C-W Oscillator Switching
Crystal Filter Circuit
AVC Connections
MVC Connections
Dynamotor DM.28-J and Filter
Radio Receiver BC-348-J, Dial and Mask Assembly
Trouble Location and Correction Chart
Crystal Filter Coil
Socket Voltages
Location of Trimmer Capacitors
Radio Receiver BC.348-J, Front View
Radio Receiver BC-348-J, Rear View of Chassis

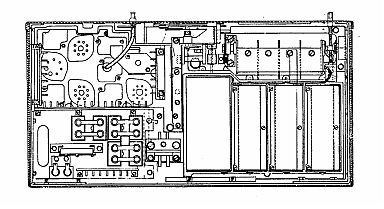

Radio Receiver BC-348-J, Top View of Chassis

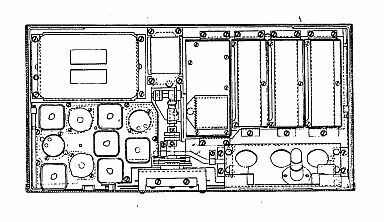

Radio Receiver BC-348-J, Bottom View of Chassis
