Kenwood TS-2000/X Transceiver
TS2000X TS2000/X All Mode Multi-Band


General
Mode J3E (LSB, USB) AlA (CW) A3E (AM) F3E (FM) F1D (FSK) F2D
Number of memory channels 300
Antenna impedance 50 ohms (With antenna tuner 16.7 to 150 ohms)
Supply voltage DC 13.8V 15%
Ground method Negative ground

Current
Transmit (Max.) 20.5A or less
Receive (No signal) 2.6A or less

Usable temperature range
-10C to +50C (+14F to +122F)

Frequency stability
(-10C to +50C)
Main Other mode Within 0.5x 10-6 (Within 0.5ppm)
FM mode 0.5x 10-6 2kHz
Sub 0.5 x 10-6 600Hz

Frequency accuracy
(at room temperature)
Main Other mode 0.5 x 10-6 (0.5ppm)
FM mode 0.5x10-6 500Hz
Sub 0.5 x 10-6 600Hz

Dimensions
(W x H x D) 270 x 96 x 317mm/ 10.6 x 3.8 x 12.5 in
(Projections included) (281 x 107 x 371 mm/ 11.1 x 4.2 x 14.6 in)
Weight TS-2000: Approx. 7.8kg (17.2 Ibs) TS-2000X: Approx. 8.2kg (18.1 Ibs)

Transmitter
Frequency range
160m band 1.8 to 2.0MHz (K) 1.81 to 2.0MHz (E) 1.83 to 1.85MHz (E2)
80m band 3.5 to 4.0MHz (K) 3.5 to 3.8MHz (E,E2)
40m band 7.0 to 7.3MHz (K) 7.0 to 7.1MHz (E,E2)
30m band 10.1 to 10.15MHz
20m band 14.0 to 14.35MHz
17m band 18.068 to 18.168MHz
15m band 21.0 to 21 .45MHz
12m band 24.89 to 24.99MHz
l0m band 28.0 to 29.7MHz
6m band 50.0 to 54.0MHz (K) 50.0 to 52.0MHz (E) 50.0 to 50.2MHz (E2)
2m band 144 to 148MHz (K) 144 to 146MHz (E,E2)
70cm band 430 to 450MHz (K) 430 to 440MHz (E,E2)
23cm band 1240 to 1300MHz (TS-2000X)

Output power
SSB/CW/FSK/FM Max 100W (1.8 to 144MHz) / 50W (430 (440) MHz)/ 10W (1.2GHz)
Min 5W (1.8 to 144MHz)/ 5W (430 (440) MHz)/ 1W (1.2GHz)
AM Max 25W (1.8 to 144MHz) / 12.5W (430 (440) MHz) / 2.5W (1.2GHz)
Min 5W (1.8 to 144MHz) /5W (430 (440) MHz)/ 1W (1.2GHz)

Modulation
SSB Balanced
FM Reactance
AM Low level

Spurious emissions
1.8 to 29.7MHz -50dB or less
50.0 to 440 (450) MHz -60dB or less
1240 to 1300MHz -50dB or less
Carrier suppression 50dB or more
Unwanted sideband suppression (Modulation frequency 1.0kHz) 50dB or more

Maximum frequency deviation (FM)
Wide 5kHz or less
Narrow 2.5kHz or less
XIT shift frequency range 20.0kHz

Microphone impedance
600ohms


Receiver
Circuit type
Main band SSB/CW/AM/FSK Quadruple conversion superheterodyne
FM Triple conversion superheterodyne
Sub band FM/AM Double conversion superheterodyne

Frequency range
( ) : VFO coverage range
Main band 0.5 to 30MHz, 50 to 54MHz (0.03 to 60.0MHz)
144 to 148MHz (K) (142 to 152MHz (K)) 144 to 146MHz (E,E2)
430 to 145MHz (K) (420 to 450MHz (K)) 430 to 440MHz (E.E2)
1240 to 1300MHz (TS-2000X)
Sub band 144 to 148MHz (K) (118 to 174MHz (K)) 144 to 146MHz (E,E2)
438 to 450MHz (K) (220 to 512MHz (K)) 430 to 440MHz (E,E2)

Intermediate frequency (IF)
Main transceiver 1st IF HF/5OMHz band : 69.085MHz or 75.925MHz
144/430(440)MHz band: 41.895MHz 1200MHz band: 135.495MHz
2nd IF 10.695MHz
3rd IF 455kHz
4th IF 12.0kHz
Sub receiver 1st IF 58.525MHz
2nd IF 455kHz

Sensitivity
Main band SSB/CW/FSK (S/N 10dB) 0.5 to 1.705MHz : 4uV or less
1.705 to 24.5MHz : 0.2uV or less
24.5 to 30.0MHz : 0.l3uV or less
50.0 to 54.0MHz : 0.l3uV or less
144 to 146MHz : 0.11uVor less (E,E2)
144 to 148MHz : 0.16uV or less (K)
430 to 440MHz : 0.11uV or less (E,E2)
430 to 450MHz : 0.11 uV or less (K)
1240 to 1300MHz :0.11uV or less

AM (S/N 10dB) 0.5 to 1.705MHz : 31 .6uV or less
1.705 to 24.5MHz : 2.0uV or less
24.5 to 30.0MHz : 1.3uV or less
50.0 to 54.0MHz : 1.3uV or less
144to 146MHz : 1.0uV or Iess(E,E2)
144 to 148MHz : 1.4uV or less (K)
430 to 440MHz : 1.0uV or less (E,E2)
430 to 450MHz : 1 .0uV or less (K)
l240 to l300MHz : 1.0uVor less

FM (12dB SINAD) 28.0 to 30.0MHz : 0.22uV or less
50.0 to 54.0MHz : 0.22uV or less
144 to 146MHz : 0.18uV or less (E,E2)
144 to 148MHz : 0.25uV or less (K)
430 to 440MHz : 0.l8uV or less (E,E2)
430 to 450MHz : 0.18uV or less (K)
1240 to 1300MHz : 0.18uV or less

Sub band AM (S/N 10dB) 144 to 146MHz : l.55uV or less (E,E2)
144 to 148MHz : 2.25uV or less (K)
430 to 440MHz : 1 .55uV or less (E,E2)
438 to 450MHz : 1 .55uV or less (K)

FM (12dB SINAD) 144 to 146MHz : 0.28uV or less (E,E2)
144 to 148MHz : 0.40uV or less (K)
430 to 440MHz : 0.28uV or less (E,E2)
438 to 450MHz : 0.28uV or less (K)

Selectivity
Main band SSB (Low cut : 300Hz / Hi cut: 2600Hz) -6dB : 2.2kHz -60dB : 4.4kHz
AM (Low cut: l00Hz! Hi cut :3000Hz) -6dB :6.0kHz -50dB :12.0kHz
FM -6dB: 12.0kHz -50dB : 25.0kHz
Sub band AM -6dB :12.0kHz -50dB : 25.0kHz
FM -6dB: 12.0kHz -50dB : 25.0kHz

Image rejection
Main transceiver 70dB or more
Sub transceiver 60dB or more
1st IF rejection
Main transceiver 70dB or more
Sub transceiver 60dB or more
Notch filter attenuation (at 1 kHz) 30dB or more
Beat cancel attenuation (at 1 kHz) 40dB or more

RIT shift frequency range
20.0kHz


Squelch sensitivity
Main band SSB/CW/FSK/AM 0.5 to 1.705MHz : 18.0uV or less
1.8 to 28.7MHz : 1 .8uV or less
50.0 to 54.0MHz : 1.1uV or less
144 to 146MHz : 1.1uV or less (E,E2)
l44 to 148MHz : 1.1uV or less (K)
430 to 440MHz : 1.1uV or less (E,E2)
430 to 450MHz : 1.1uV or less (K)
1240 to 1300MHz : l.1uV or less

FM 28.0 to 30.0MHz : 0.2uV or less
50.0 to 54.0MHz : 0.2uV or less
144 to 146MHz : 0.1uV or less (E,E2)
144 to 148MHz : 0.16uV or less (K)
430 to 440MHz : 0.1uV or less (E,E2)
430 to 450MHz : 0.1uV or less (K)
1240 to 1300MHz : 0.1uV or less

Sub band AM l44 to l46 MHz : 1.1uV or less (E,E2)
l44 to l48MHz : 1.1uVor less (K)
430 to 440MHz : 1.1uVor less (E,E2)
438 to 450MHz : 1.luV or less (K)

FM 144 to 146MHz : 0.18uV or less (E,E2)
144 to 148MHz : 0.23uV or less (K)
430 to 440MHz : 0.18uV or less (E,E2)
438 to 450MHz : 0.l8uV or less (K)

Audio output
(8 ohms. 10% distortion) 1.5W or more

Audio output impedance
(EXT. SP1 and EXT. SP2) 4 - 8ohms

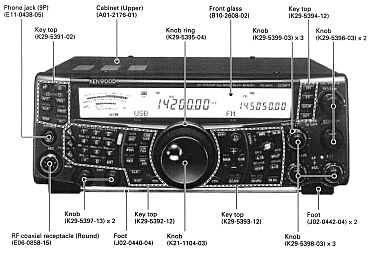

Kenwood TS2000S.jpg (25738 bytes)

Manual with Circuits and
Layout images Available
Details Below
On CD or as a Download

Click Here

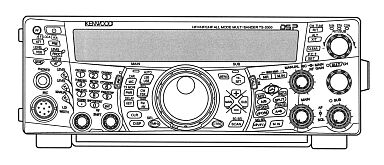

Kenwood TS2000S 2.jpg (20624 bytes)

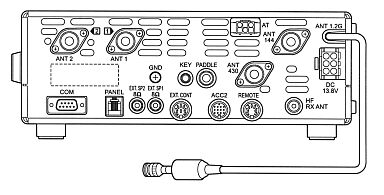

Kenwood TS2000S 3.jpg (19541 bytes)


The Kenwood TS-2000/X Manual
Consists of  the Following


CIRCUIT DESCRIPTION
DESCRIPTION OF COMPONENTS
SEMICONDUCTOR DATA
PARTS LIST

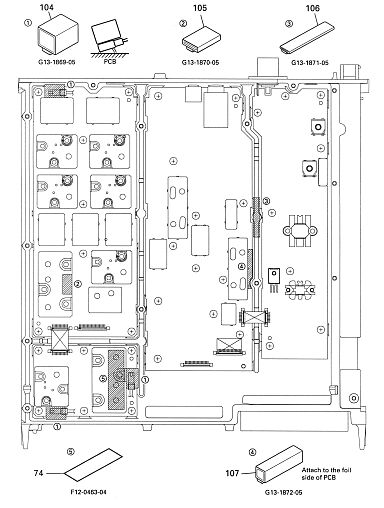

EXPLODED VIEW
PACKING
ADJUSTMENT
TERMINAL FUNCTION
WIRING
PC BOARD VIEWS / CIRCUIT DIAGRAMS
FILTER UNIT (X51-315X-XX)
FINAL UNIT (X45-360X-XX)
DISPLAY UNIT (X54-3320-00)
CONTROL UNIT (X53-391X-XX)
TX-RX 1 UNIT (X57-605X-XX)
TX-RX 2 UNIT (X57-606X-XX)
TX-RX 3 UNIT (X57-6070-00)
BLOCK DIAGRAM
LEVEL DIAGRAM
MC-52DM
UT-20
RC-2000
ARCP-2000
SPECIFICATIONS

ALL CIRCUITS AND BOARD LAYOUTS INCLUDED

Manual with Circuits and
Layout images Available
Details Below
On CD or as a Download

Click Here

Kenwood TS2000S 4.jpg (40647 bytes)


Kenwood TS-2000X TS2000X TS2000/X All Mode multi-band Transceiver
This Manuals is Available Worldwide as a Download on CD.

Manual with Circuits and Printed Board Layouts total of 171 pages.
Manual 171 A4 pages worldwide

Printed Paper Copy or on CD are Plus Postage.

( For all Payment Options plus UK and Overseas Postage )
( Please Click the Payment Links Below )


We do all we can to provide the very best that is available for you.
But in the unlikely event that any data should not be as you expected.
A refund is always available. Kind Regards Allen and Alanna.


This Service Manual is Available Worldwide On CD or as a Download

Thank you for your interest. Allen and Alanna G0RIT
