Mullard High Speed Valve Tester Manual & Circuit, Valve Card Index plus Test Card Index.

Full Manuals with Circuits available Details Below.

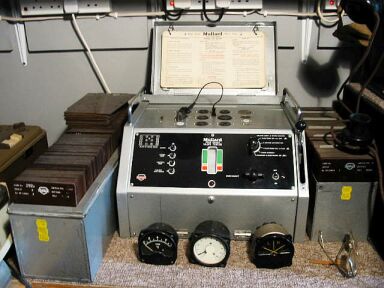

One of my Mullard High Speed Valve Testers E7600/3, complete with an almost full set of punched cards.

Once upon a time no self respecting radio and TV shop would be without a Mullard High Speed Valve Testers E7600/3, it was one of my first jobs as a budding engineer to test customers valves.

The general idea was to save money by fixing the fault yourself, in practice you paid 6 old pennies for the test bought a replacement valve only to find the fault was elsewhere.

I remember feeling very technical pressing those buttons, the results were displaced on a small CRT screen by the position on a dot of light.


Old Photograph of a complete Mullard High Speed Valve Tester E7600/3 with hinged cover for the card index and a mobile table with two trays for the  punched cards.

The Mullard High Speed Valve Tester uses a  set of punched cards which  programmed the tester for a particular valve, the punched cards save the time of setting a number of switches and dials for each valve.

A special repair service by Mullard was available throughout the country just for the High Speed Valve Tester.


The Mullard High Speed Valve Tester E7600/3

I have the following information on the Mullard High Speed Valve Tester E7600/3.

All these three items are included in the purchase option below

The Manual which includes the circuit 38 A4 pages

Plus 16 page test card index,

Plus 11 pages numerical list of valves issue four

A total of 65 pages comprising the following :-

Prices and Purchase Options Below


Contents
Operation
Installation
Testing Routine
Servicing
Illustrations
Controls
Terminal Block
Indicator Scale
Indicator Scale for Signal Diodes
Gate Switch Mechanism
Interior of Tester showing components
Detailed View of resisters behind gate
Left-hand side with cover removed
Right hand
Adaptors for cathode ray tubes
Adapters for certain types of valves
Circuit Diagram
Components and parts list 3 pages
Test Card Index 16 pages
Plan of test card

It is comprehensive and gives all the relevant information to renovate and operate a Mullard High Speed Valve Tester E7600/3.
I used this manual to renovate and operate my Mullard Valve Tester.


Mullard High Speed Valve Tester Manual
Manuals are Available Worldwide as a Download on CD or Paper Copy.


Manual 64 A4 pages worldwide

Printed Paper Copy or on CD are Plus Postage.

( For all Payment Options plus UK and Overseas Postage )
( Please Click the Payment Links Below )

We do all we can to provide the very best that is available for you.
But in the unlikely event that any data should not be as you expected.
A refund is always available. Kind Regards Allen and Alanna.
