Trimax Digital satellite finder SM-4500

£195 Plus £11 UK Postage


Equipment For Sale Index Click Here

Military Radio Home Click Here


My Trimax Digital satellite finder  SM-4500 only used to set up my 1.3 prime focus KU band and 1.4 C band motor driven dishes.


Looks as new battery holds charge even when stored for some time as this model is noted for : )

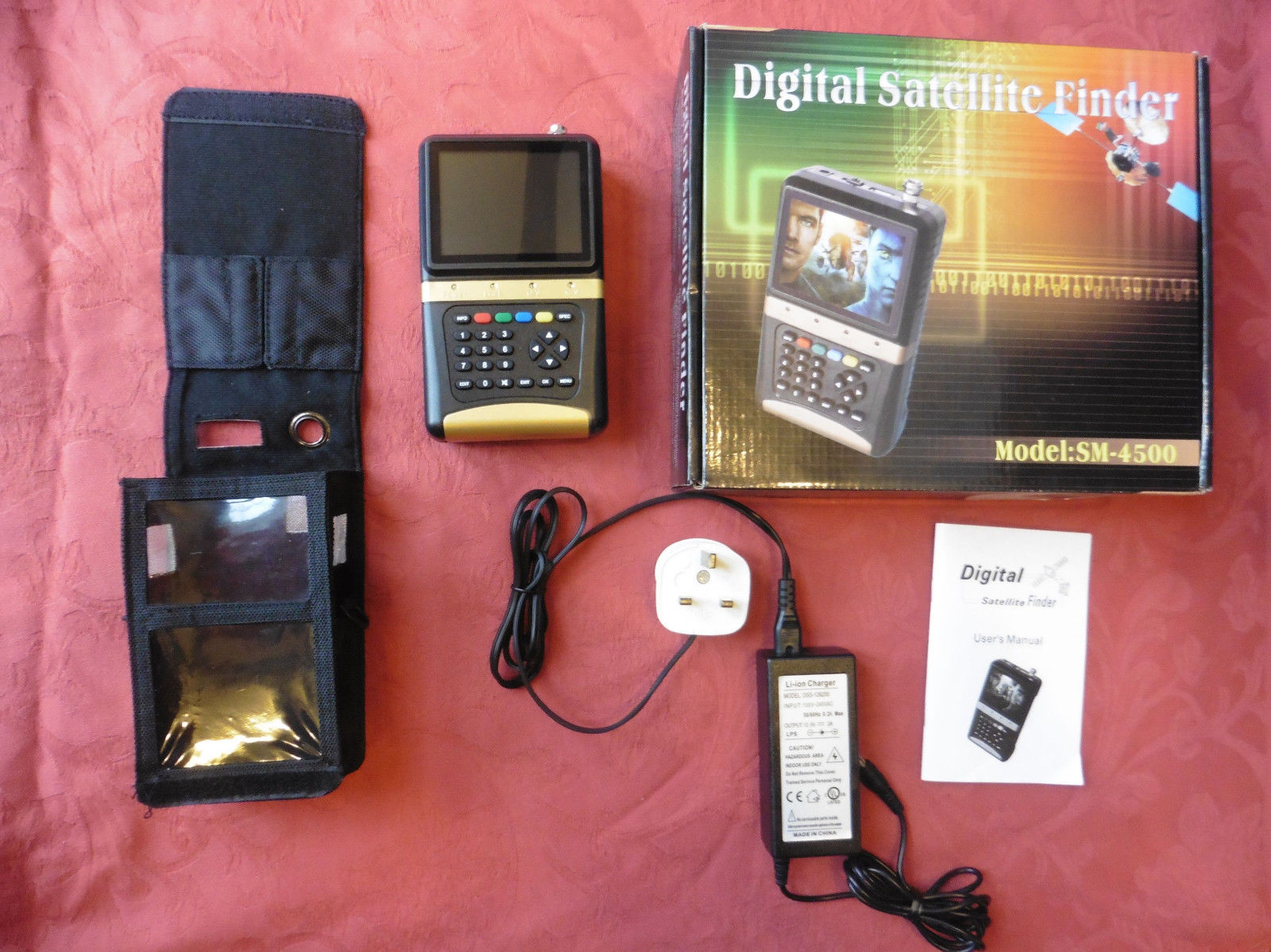

Complete with case power supply instructions and box.


I no longer require it as I do not install dishes for a living.
Plus I find it easier to use a radio with Alanna at the TV end with the Technomate, as I know the signal levels to expect on that receiver.


It has a spectrum Analyzer plus blind scan it will also will show the picture from the received channel with sound so a nice piece of equipment.

Insurance is included in the postage : )

High quality item not one of the cheaper models : )


 God Bless Allen and Alanna


  • Advanced high speed spectrum analyzer
  • Live FTA Digital Picture and Sound
  • Watch the free channels, 3.5 inch LCD Colour Screen

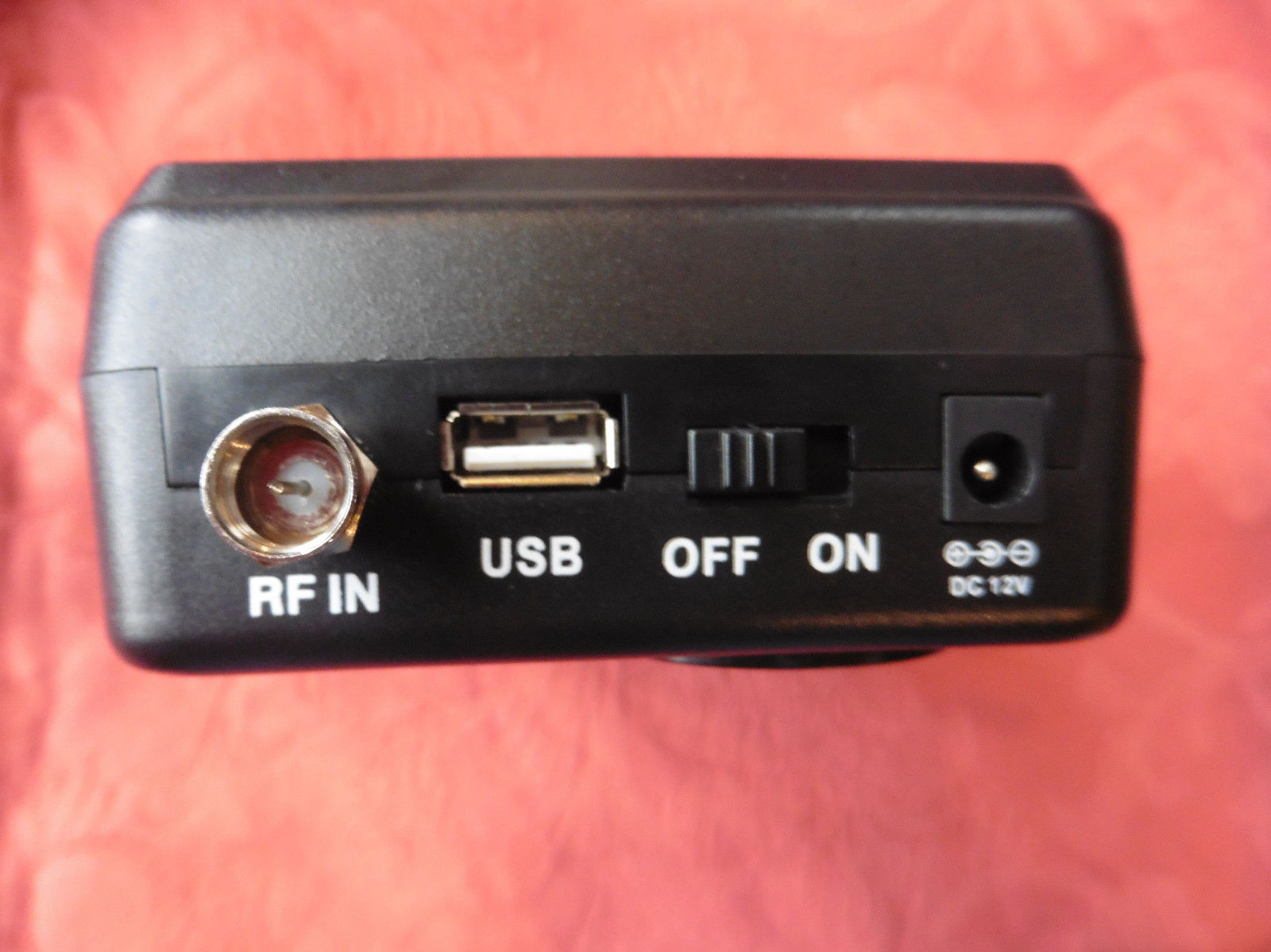

  • USB port for software upgrades from USB drive
  • Manual on/off switch to conserve battery life

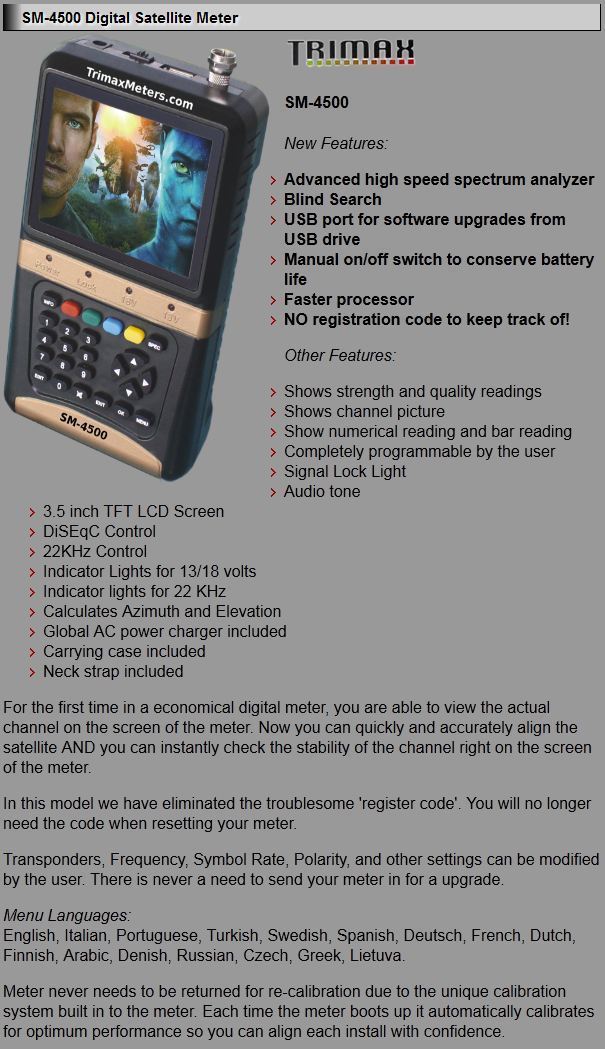

  1. For specification copied from maker site please see below : -



  • In this model we have eliminated the troublesome 'register code'.

  • You will no longer need the code when resetting your meter.


    Transponders, Frequency, Symbol Rate, Polarity, and other settings can be modified by the user.
  • There is never a need to send your meter in for an upgrade.

    Menu Languages:

    English, Italian, Portuguese, Turkish, Swedish, Spanish, Deutsch, French, Dutch, Finnish, Arabic, Denish, Russian, Czech, Greek, Lietuva.

  • Meter never needs to be returned for re-calibration due to the unique calibration system built in to the meter.

  • Each time the meter boots up it automatically calibrates foroptimum performance so you can align each install with confidence.

    New Features:

    Other Features:

    • Advanced high speed spectrum analyzer

    • Blind Search

    • USB port for software upgrades from USB drive

    • Manual on/off switch to conserve battery life

    • Faster processor

    • NO registration code to keep track of!

    • ON / OFF switch avoids battery drain

    • Shows strength and quality readings

    • Shows channel picture

    • Show numerical reading and bar reading

    • Completely programmable by the user

    • Signal Lock Light

    • Audio tone

  • 3.5 inch TFT LCD Screen

  • DiSEqC Control

    • 22KHz Control

    • Indicator Lights for 13/18 volts

    • Indicator lights for 22 KHz

    • Calculates Azimuth and Elevation

    • Global AC power charger included

    • Carrying case included

    • Neck strap included

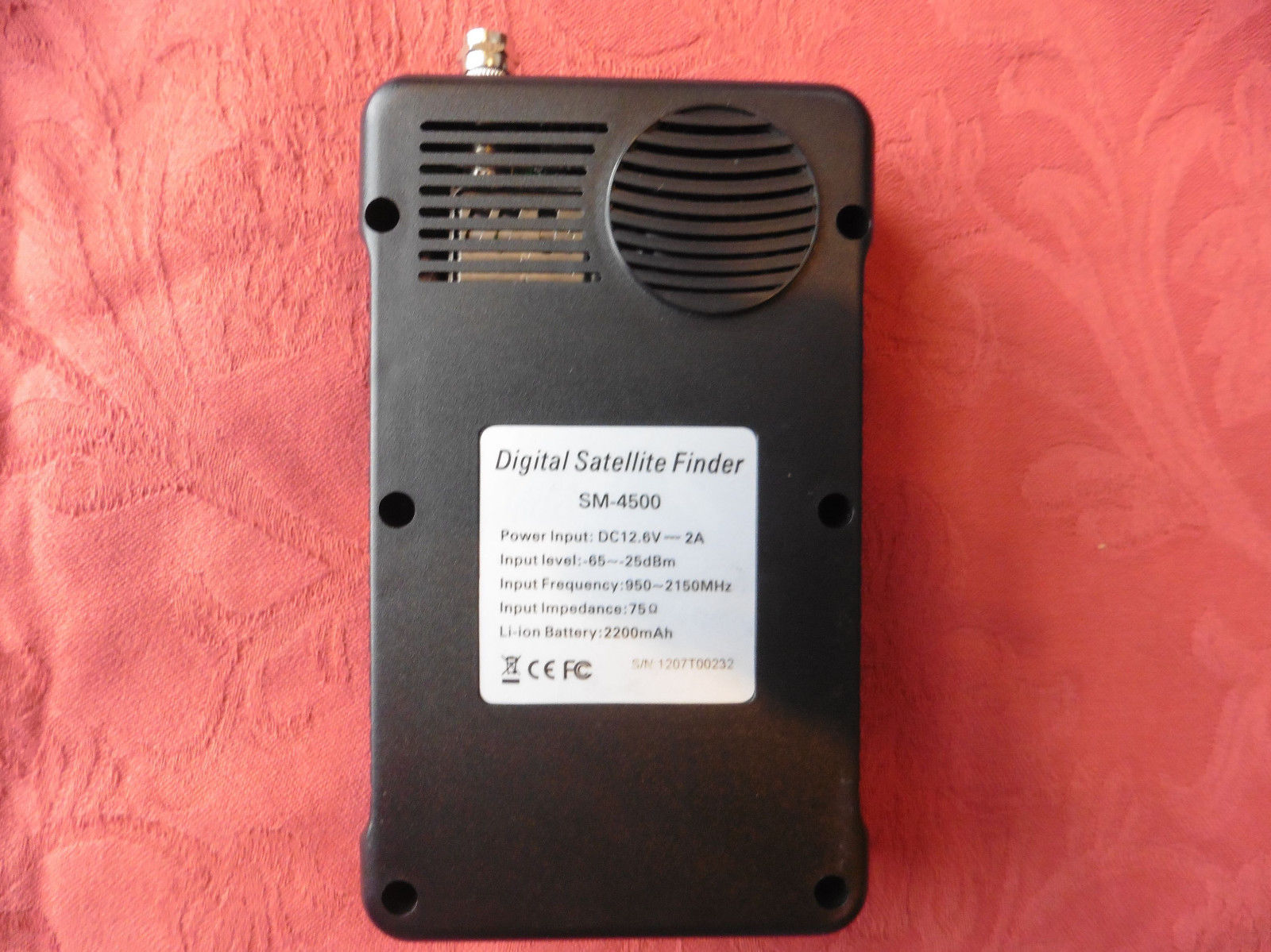

    Trimax Meters ~

    Signal Frequency Range 950MHz ~ 2150MHz

    Signal level -25~-65dBmVSpectral Inversion

    Impedance 75Ω

    Signal Processing

  • Demodulation QPSK

    Symbol rate ~ 45Mbps

    22KHz tone

  • Supported

    DiSEqC 1.0/1.1/1.2

    Supported

    Power Supply

    Power for LNB

    13V/18V <500mA

    DC power supply

    DC 12.6V battery

    Power Charger input AC 110V/60Hz/220V/50Hz +/- 10%

    Power charger output 12.6VDC, 2000mA

    Operating time of battery 2~3 hours (fully charged)

    Misc.

    Dimensions 160 x 97 x 47 mm

    Operating temperature 0°C ~ +40°C

    LCD display 3.5 inch

    Audio output built-in speaker

    Input connector F type

    Satellite / Transponder lists are available on our software page

    List and upgrades are now loaded using a USB drive.

 Payment is by PayPal or Bank Transfer prefered : )

God Bless

Kind Regards Allen and Alanna, G0RIT


( Please See Image Below )

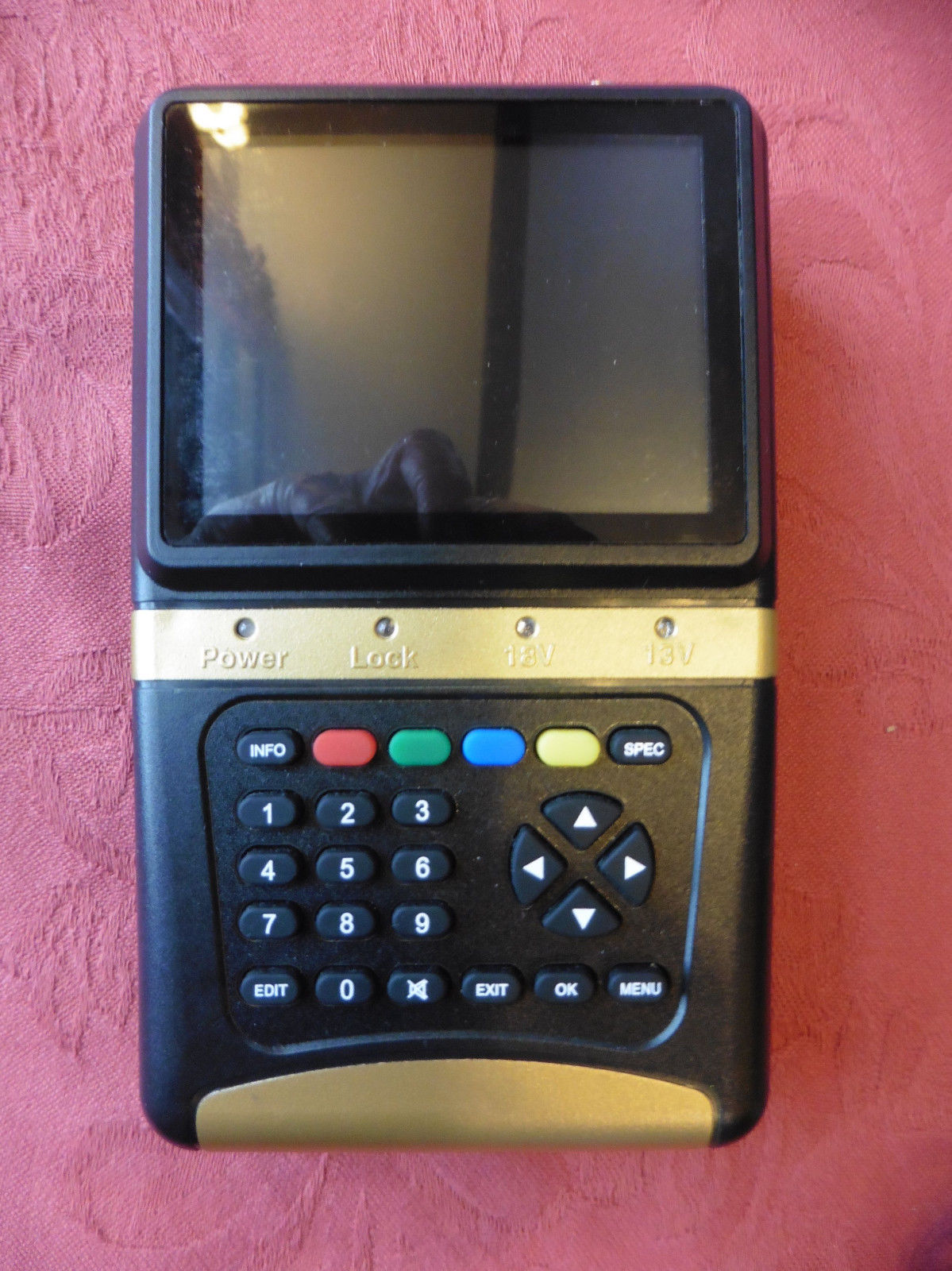

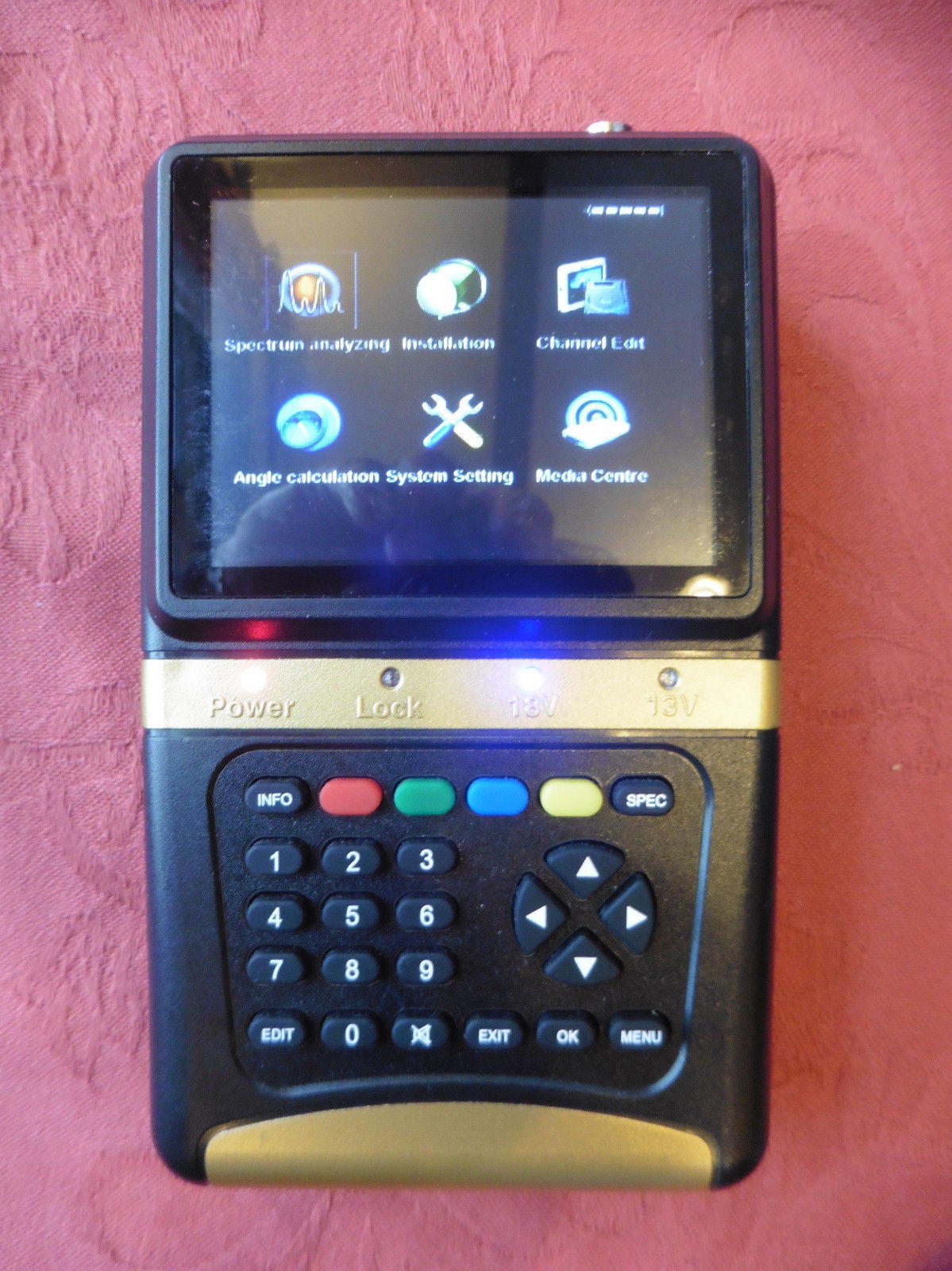

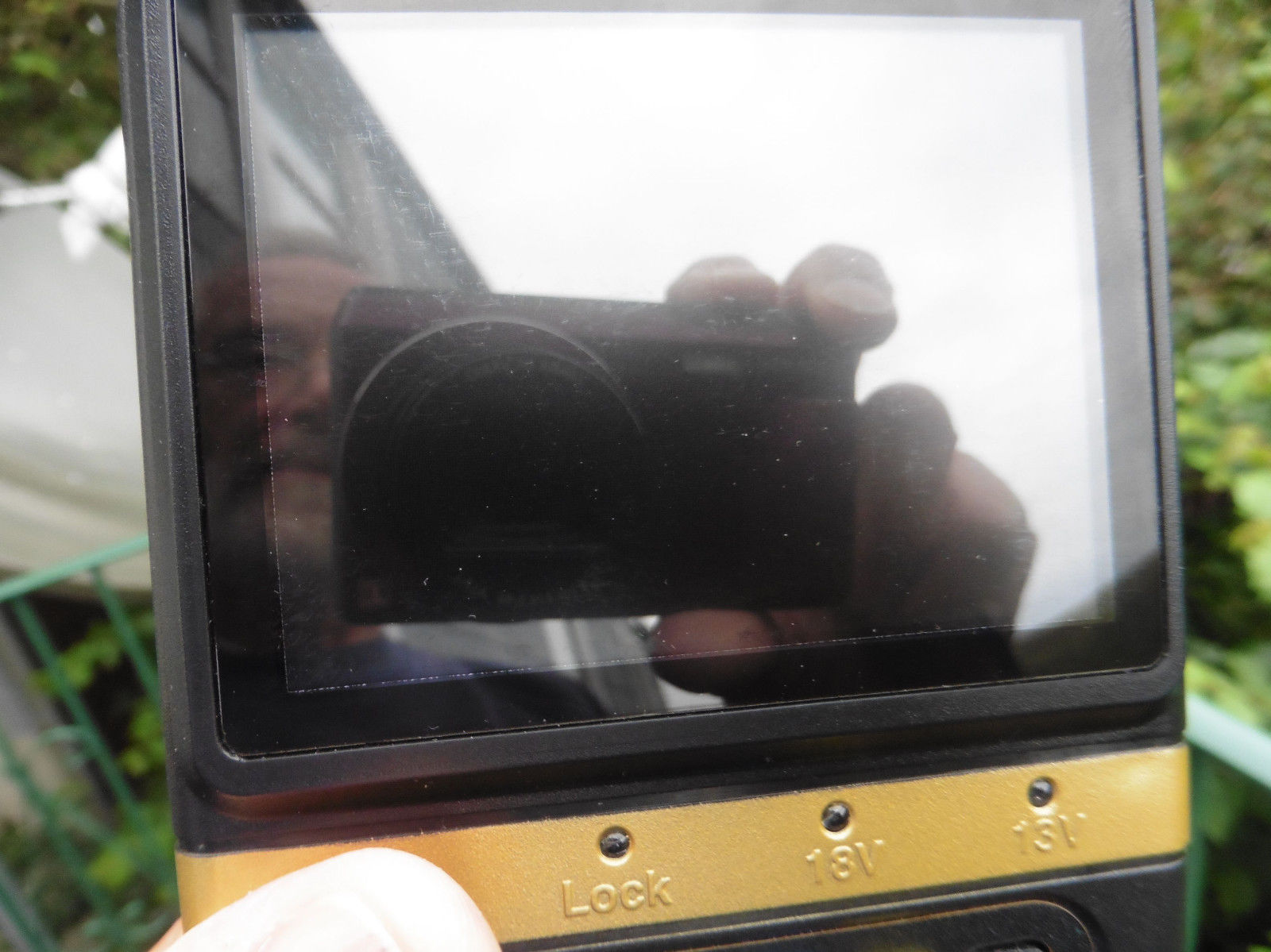

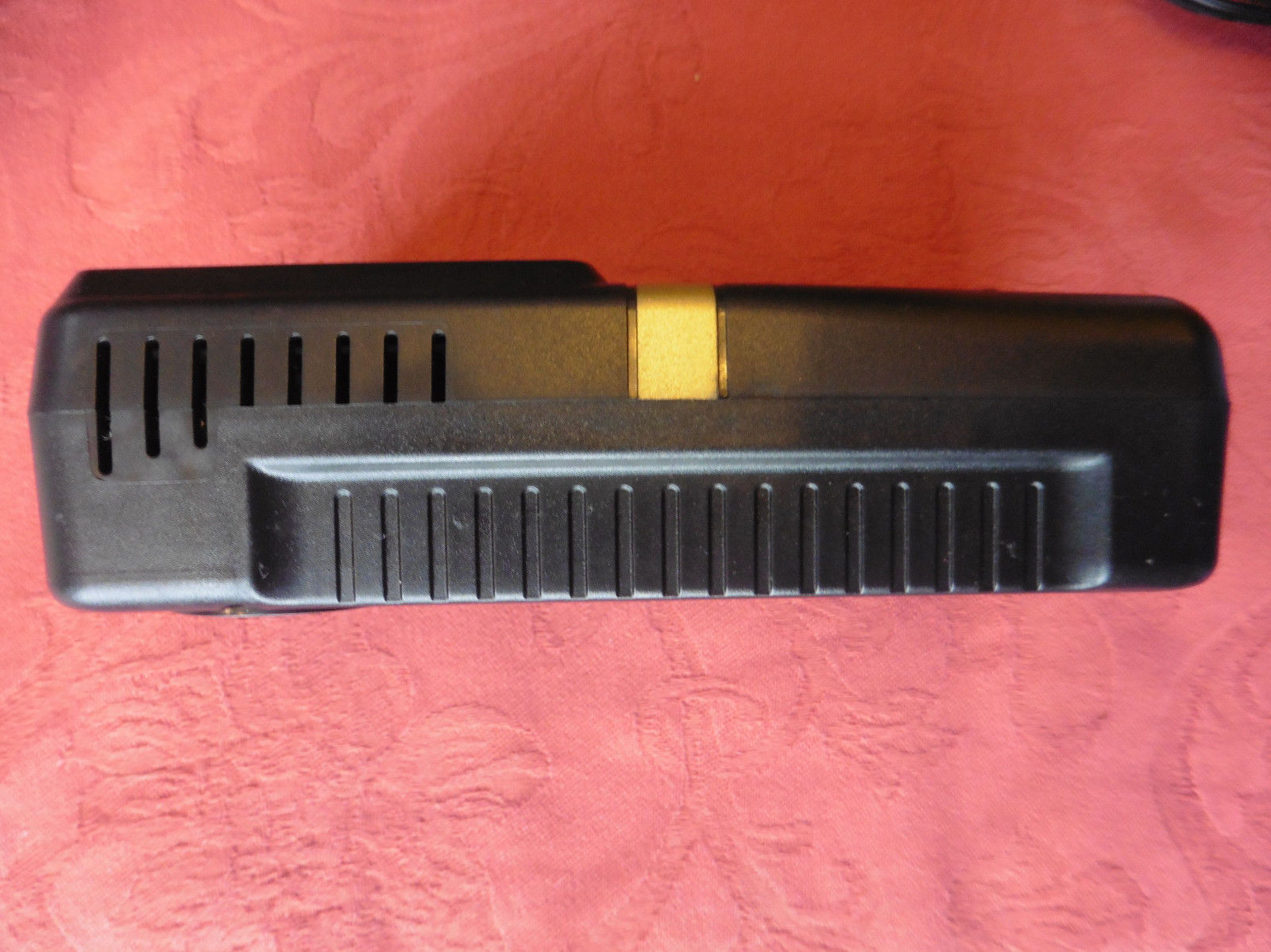

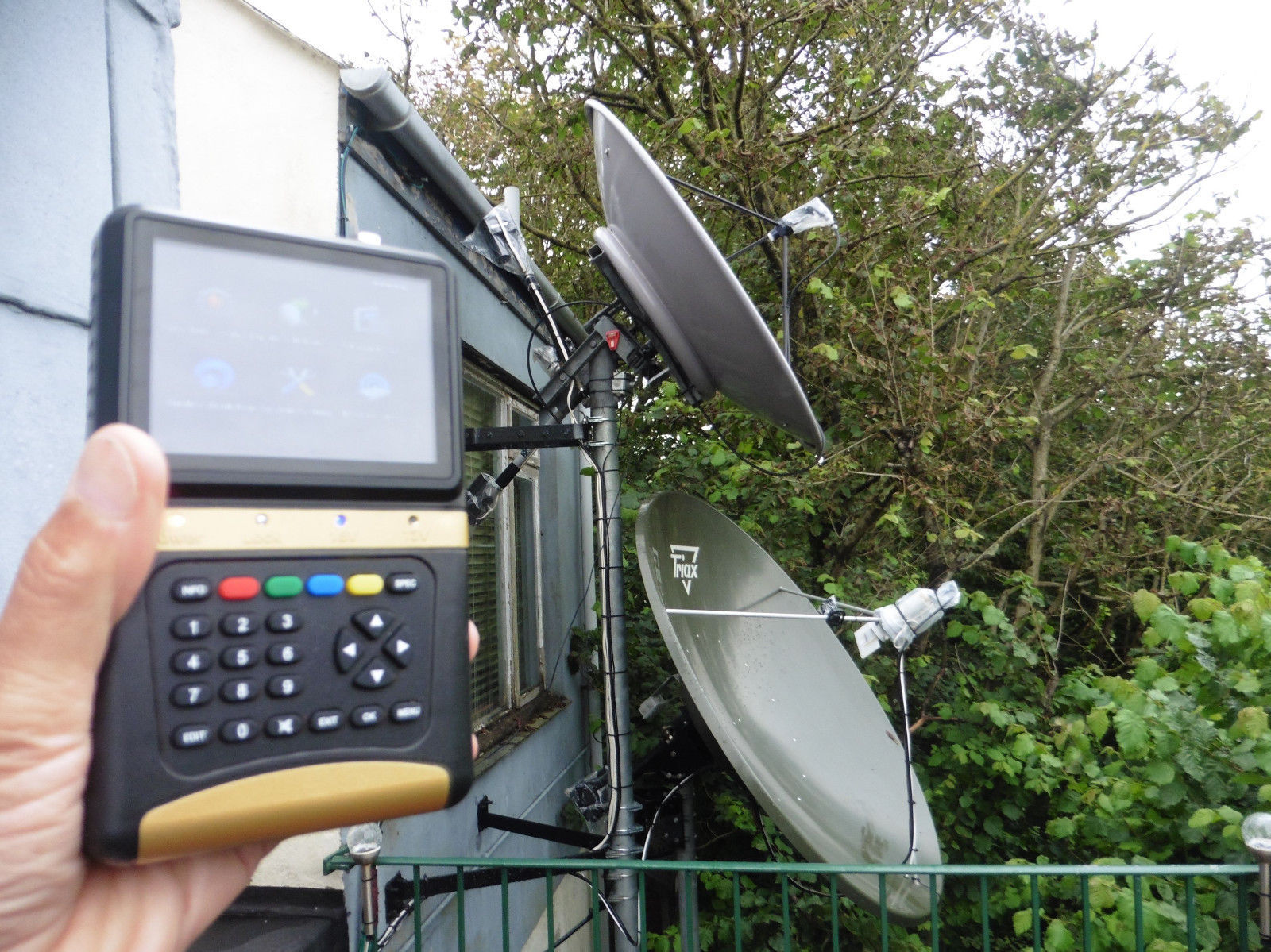

Trimax Digital satellite finder  SM-4500
Please click on images for full size : )





Trimax Digital satellite finder  SM-4500
