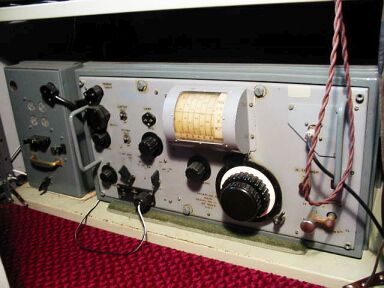

R206 Mk1 Communication Receiver
British manufacture for the Army dates from around the end of WWII.

It was a high performance super-heterodyne high grade intercept HF communications receiver, capable of high resetting accuracy.

Modes
AM R/T and CW.

Frequency coverage
0.55 kc/s to 30 Mc/s in 6 Bands.
Band 1 : - 30 to 20 Mc/s.
Band 2 : - 20 to 10 Mc/s.
Band 3 : - 10 Mc/s to 4.8 kc/s.
Band 4 : - 4.8 to 2.2 kc/s.
Band 5 : - 2.2 to 1.1 kc/s.
Band 6 : - 1.1 to 0.55 kc/s

Adaptor Frequency Range No. 1
Extends frequency coverage from  600kc/s-50kc/s  in  three additional ranges.

0.6Mc/s to 260kc/s
260kc/s to 115kc/s
115kc/s to 50kc/s.

The Adaptor was designed to take its HT and heater supplies from a socket outlet at the back of the receiver.

The IF is 465 kc/s.

Powered from AC mains / or 12V DC.

The PSU and the LF Adaptor were separate from the main receiver and contained a small loudspeaker.

The PSU requires 110-240 volts a.c. or 12 volts d.c.

Front panel controls
Main Tuning with fast & slow positions.
Range Control.
Vernier Tuning Control.
AE Trimmer.
RF Gain and Bandwidth switching of  0.7kc/s, 2.5kc/s and 8kc/s.
AVC on-off.
CW, RT, BFO.
AF Gain
AF Filter.
Limiter in-out.
Power on-off.

The set uses 10 valves.

Of very impressive appearance, being both large and heavy.

The turret tuning system is massive.

The Power supply and Adaptor both weigh around 50 lbs each.

The main receiver weighs 120 lbs.

The receiver alone is 25" wide x 12.5" high x 14.75" deep.

Circuit available
Details Below
On Paper CD or Download
Click Here


R206 Mk1 Communication Receiver
Manuals are Available Worldwide as a Download on CD or Paper Copy.

Circuit only 3 Pages No Component Values
Circuit 3 A4 pages worldwide

Printed Paper Copy or on CD are Plus Postage.

( For all Payment Options plus UK and Overseas Postage )
( Please Click the Payment Links Below )


We do all we can to provide the very best that is available for you.
But in the unlikely event that any data should not be as you expected.
A refund is always available. Kind Regards Allen and Alanna.


Manuals are Available Worldwide as Paper Copy on CD or as a Download

Thank you for your interest. Allen and Alanna G0RIT
