Sailor T2031

The Sailor T2031 is an all solid state construction marine 400 watt SSB duplex telephony transmitter.

It was designed to withstand the most extreme conditions experienced in small semi-open boats. Its compact construction ensures a degree of resistance to sea spray.

The printed circuits which have made possible a combination of compactness and exceptional performance, are coated with a special moisture-repellent lacquer.

The T2031 has a one hand antenna tuning, is fully synthesized and the frequency stability is controlled from a crystal oscillator.

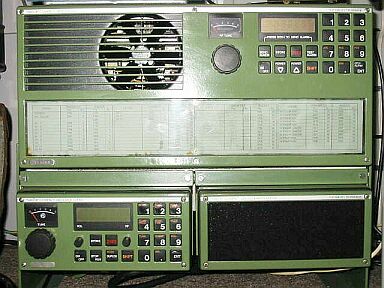

Sailor TX 2031 RX 2022.jpg (34241 bytes)

It has two microcomputers controlling the synthesizer the display and the protection circuit. It is also provided with membrane switches for controls, easy to use, reliable and hard wearing.

Cutouts in the metal front serve as a safe finger guide, it is fitted with night illumination and is housed in a corrosion resistant aluminum cabinet with a green nylon finish.

Modes of Operation
J3E - H3E - R3E.

Frequency Range
1600 to 4300 kHz.

It has 128 programmed frequencies, 94  operator - programmed quick-select frequencies and a one key operation of the distress frequency 2182 kHz.

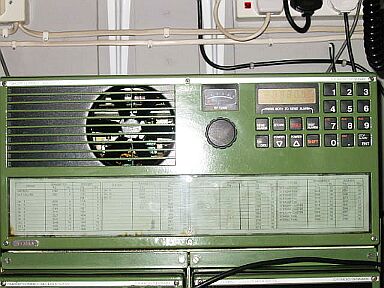

Sailor TX 2031.jpg (34051 bytes)

Automatic H3E mode on this frequency with a two-tone alarm, 1300 and 2200 Hz, duration of 45 sec's.

Power Supply
Nominal 24 volts DC, -10% to + 30%, can be supplied from 21.6 to 31.2 v DC.

Power Consumption
Transmitter un-keyed 24 watt, Two-tone 750 watt, J3E normal speech 350 watt.

Aerial Length
8 to 14 m.

Weightt
40 lbs - 18kg .

The Sailor R2022
can be installed and operated either as an independent unit or in combination with the above T2031 transmitter, a duplex VHF RT2047 and a scrambler CRY2001.

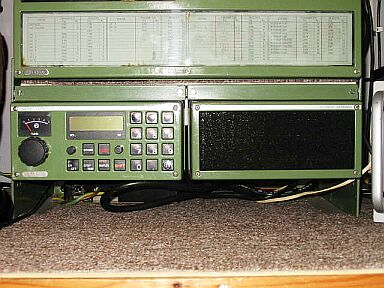

Sailor RX 2022 & Speaker.jpg (35576 bytes)

The R2022 is an advanced SSB coast telephony receiver which also operates on AM and FM. It is a solid state constructed communications receiver  intended for reception of  J3E, R3E, H3E, and A3E signals.

Frequency Range
1605 to 4500 kHz.

In addition it offers reception of general broadcasting frequency ranges 140 to 1605 and 87 to 108 MHz.

It has
94  user- programmed quick-select frequencies and a one key operation of the distress frequency 2182 kHz.

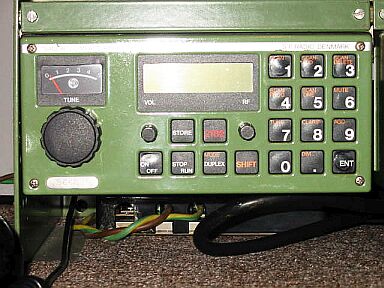

Sailor RX 2022.jpg (35578 bytes)

The R2022 has 6 scanning programmes, one standard programme  containing all the programmed quick-select frequencies and 5 user programmed scanning sequences.

The receiver is fully synthesized and has a frequency resolution of 100 Hz (10 kHz).

The frequency stability is controlled  from a crystal oscillator and is almost completely controlled by a microcomputer controlling the frequency synthesizer, the readings from the EEPROM, the display, the scanning sequences and the simplex protection circuits.

It is fitted with night illumination.

Sailor Ant Switch.jpg (31296 bytes)

Power Supply
10 to 32 volts DC.

Power Consumption
Approx. 20 watts.

The compact nylon treated metal cabinet contains power supply, duplex filter and receiver.

Fly-wheel tuning, quick select frequencies, keyboard controls, LCD- display and scanning facilities make it simple and speedy to operate

Weight of the receiver
10 lbs - 4.5 kg.

Loudspeaker H2074
Audio output is 7 watts into 8 ohms.

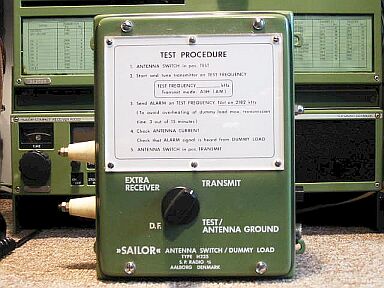

Antenna Dummy Load (H225)
Is shown in picture No 5

Full Manuals with
Circuits available
Details Below
On Paper CD or Download

Transmitter Click Here

Receiver  Click Here


I have a full manual on the Sailor T2031 Transmitter and the R2022 Receiver, it is a well constructed powerful radio with a selective Receiver, one of my favourites.

The T2031 Transmitter manual contains 188 A4 pages it includes all circuits and layouts the index is listed below.

Full Manual
1 Introduction
1.1 General Description
1.2 Technical Data
1.3 Controls
1.4 Principal of Operation

2 Installation
2.mounting
2.2 Packing List
2.3 Dimensions
2.4 Electrical Connections
2.5 Aerial & Earth
2.6 Aerial Tune Up

3 Service
3.1 Maintenance
3.2 Test Equipment
3.3 Test Programs
3.4 Trouble Shooting
3.5 Performance Check
3.6 Adjustments
3.7 Adjustments after Repair
3.8 Function Check
3.9 Pin Configurations
3.10 Adjustment & Module Locations

4 Disassembling

5 Circuit Description & Schematic Diagrams
5.1 Exciter Unit Module 1
5.2 Power Amp Module 2
5.3 Filter Unit Module 3
5.4 Aerial Voltage Detector Module 4
5.5 Power Control Computer Module 5
5.6 Coil Unit Module 6
5.7 Frequency Synthesizer Module 7
5.8 General Description for Power Unit 11
5.9 General Description for Power Supply Unit 1
5.10 Wiring Diagram

6 Microtelephone Installation
6.1 Special Installation 2 Microphones
6.2 Special Installation 3 Microphones

7 Parts List

It is comprehensive and gives all the relevant information to renovate the Sailor T2031 SSB Transmitter, I used this manual to renovate my Transmitter.


Transmitter T2031
Manuals are Available Worldwide as a Download on CD or Paper Copy.

Transmitter Manual including all circuits & Layouts 188 A4 Pages
Manual 188 A4 pages worldwide

Printed Paper Copy or on CD are Plus Postage.

( For all Payment Options plus UK and Overseas Postage )
( Please Click the Payment Links Below )


Receiver R2022
Manuals are Available Worldwide as a Download on CD or Paper Copy.

Receiver Manual including circuits & Layouts 145 A4 Pages
Manual 145 A4 pages worldwide

Printed Paper Copy or on CD are Plus Postage.

( For all Payment Options plus UK and Overseas Postage )
( Please Click the Payment Links Below


Transmitter T2031 & Receiver R2022

Manuals are Available Worldwide as a Download on CD or Paper Copy.

Both Transmitter and Receiver manuals a total of  333 A4 Pages
Manual 333 A4 pages worldwide

Printed Paper Copy or on CD are Plus Postage.

( For all Payment Options plus UK and Overseas Postage )
( Please Click the Payment Links Below


We do all we can to provide the very best that is available for you.
But in the unlikely event that any data should not be as you expected.
A refund is always available. Kind Regards Allen and Alanna.


Manuals are Available Worldwide as Paper Copy on CD or as a Download

Thank you for your interest. Allen and Alanna G0RIT
Should you wish to purchase


For Worldwide Prices Payment Options and Delivery Details


Transmitter Manual  including Circuit Diagrams 188 pages

  For Worldwide Prices Payment Options and Delivery Details

Receiver Manual including Circuit Diagrams 145 pages

  For Worldwide Prices Payment Options and Delivery Details


Special Offer Both Transmitter and Receiver Manual

Should you wish to contact us first with any queries Please Click Here




I have a full manual on the Sailor R2022 Receiver, it is a well constructed selective radio, one of my favorites

The R2022 Receiver manual contains 145 A4 pages it includes all circuits and layouts the index is listed below.

Full Manual :-
1 Introduction
1.1 General Description
1.2 Technical Data
1.3 Controls
1.4 Principal of Operation

2 Installation
2.1 Mounting Possibilities
2.2 Dimensions
2.3 Electrical Connections
2.4 Aerial & Earth
2.5 Aerial Tune Up
2.6 R2022 Used in Conjunction with T121, T122, T124, T126, or T128.
2.6.1 Electrical Connections of R2022 & T12X
2.6.2 Dimensions for H2093

3 Service
3.1 Maintenance
3.2 Test Equipment
3.3 Trouble Shooting
3.4 Performance Check
3.5 Adjustments
3.6 Adjustments after Repair
3.7 Function Check
3.8 Pin Configurations
3.9 Adjustment, Test Point & Module Locations

4 Mechanical Disassembling

5 Circuit Description & Schematic Diagrams
5.1 Front End Module 1
5.2 IF AMP, DET, AGC & AF PRE.AMP, Module 2
5.3 Frequency Synthesizer Module 3
5.4 Processor Unit Module 4
5.5 Converter Unit Module 5, AF AMP & Filter Unit Module 7
5.6 Wiring Diagram & Interconnection Cable Diagram, Main Chassis Module 6

6 Parts List

It is comprehensive and gives all the relevant information to renovate the Sailor R2022 Receiver, I used this manual to renovate my Receiver.
