Tektronix 310A  Tectronics 310 A Oscilloscope

Introduction
The Tektronix Type 310A Oscilloscope is a portable precision instrument designed for equipment maintenance or calibration at its point of use.

A DC to four megahertz vertical system provides calibrated deflection factors from 0.01 to 50 volts/division (0.01 to 0.05 volts/division AC coupled only).

The trigger circuits provide stable triggering over the full vertical bandwidth. The horizontal deflection system provides calibrated sweep rates from 0.2 second to 0.5 microsecond/division.

A X5 magnifier allows each sweep rate to be increased five times and provides a maximum sweep rate of 0.1 microsecond/division in the .5 micro SEC position.

X - V measurements can be made by applying the vertical (Y) signal to the vertical INPUT connector and the horizontal (X) signal to the EXT HORIZ INPUT binding post on the rear panel.
(Horizontal Display switch set to EXT HORIZ).

The regulated DC power supplies maintain constant output over a wide variation of line voltages and frequencies.

Total power consumption is about 175 watts.

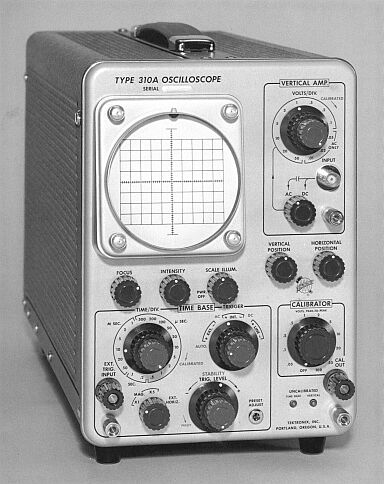

Tektronix 1.jpg (43940 bytes)


The Manual with operating instructions contains the following :-

Section 1 Type 310A Specification
Section 2 Operating Instructions
Section 3 Circuit Description
Section 4 Maintenance
Section 5 Performance Check/Calibration Abbreviations and Symbols Parts Ordering Information
Section 6 Electrical Parts List
Section 7 Mechanical Parts List
Section 8 Diagrams



Manual Circuit and
Operation Instructions
Details Below
On Paper CD or Download

Click Here

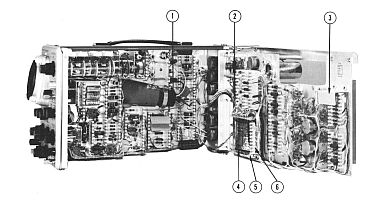

Tektronix 3.jpg (20618 bytes)

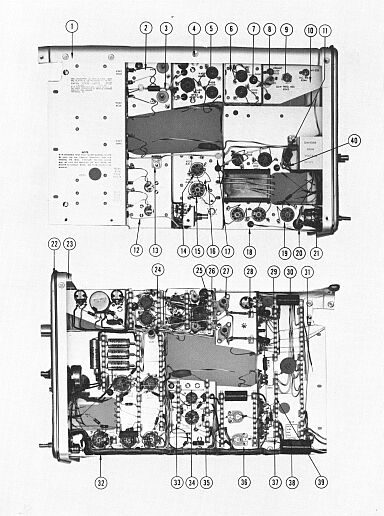

Tektronix 4.jpg (54319 bytes)


Tektronix 310A 310 A Oscilloscope
Manuals are Available Worldwide as a Download on CD or Paper Copy.

The manual contains 129 pages including Circuits Component lists Layouts.

Manual
129 A4 pages worldwide

Printed Paper Copy or on CD are Plus Postage.

( For all Payment Options plus UK and Overseas Postage )
( Please Click the Payment Links Below )

We do all we can to provide the very best that is available for you.
But in the unlikely event that any data should not be as you expected.
A refund is always available. Kind Regards Allen and Alanna.


Manuals are Available Worldwide as Paper Copy on CD or as a Download

Thank you for your interest. Allen and Alanna G0RIT
